JDD-VCW Hook and Loop

Braided Wrap

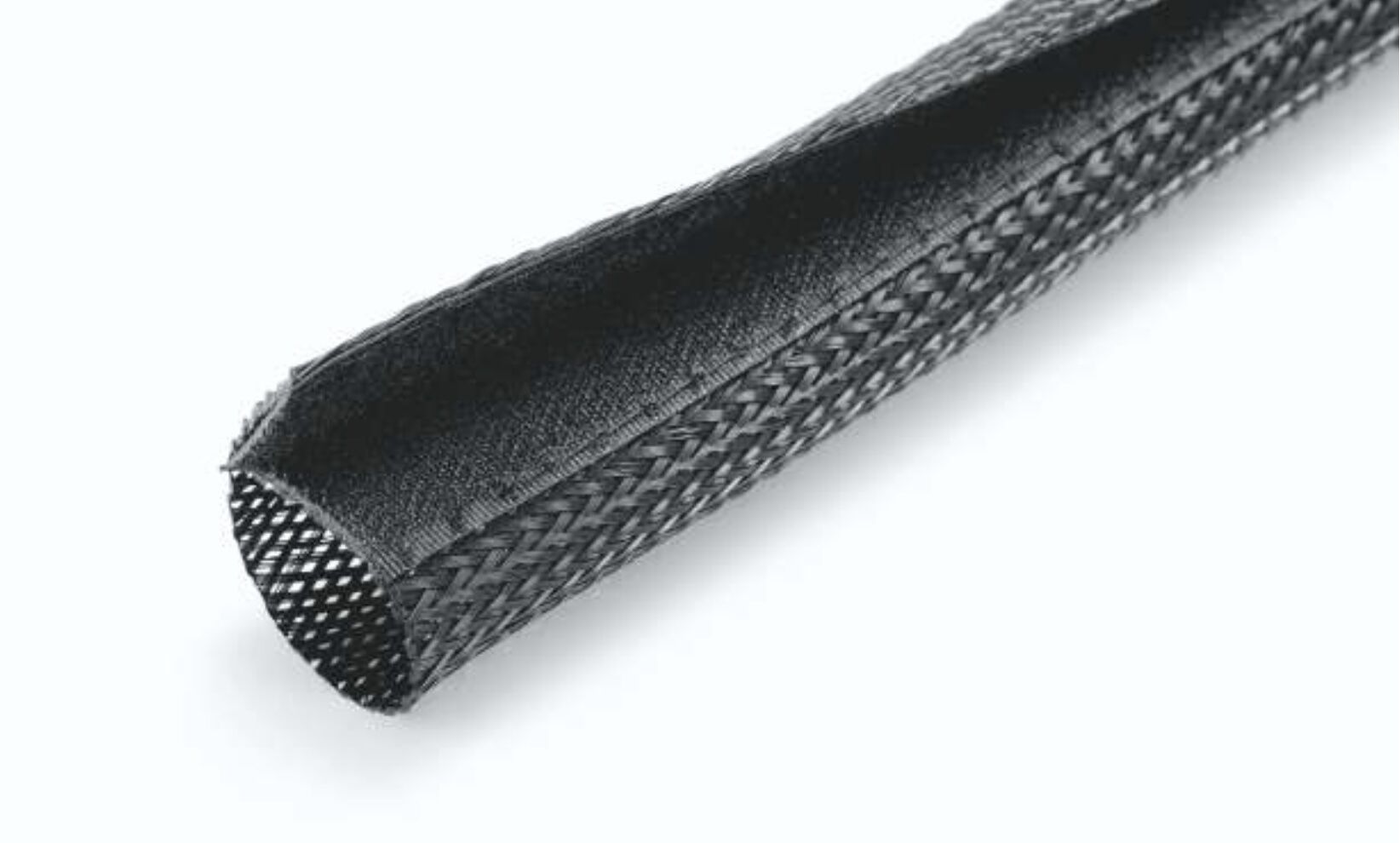

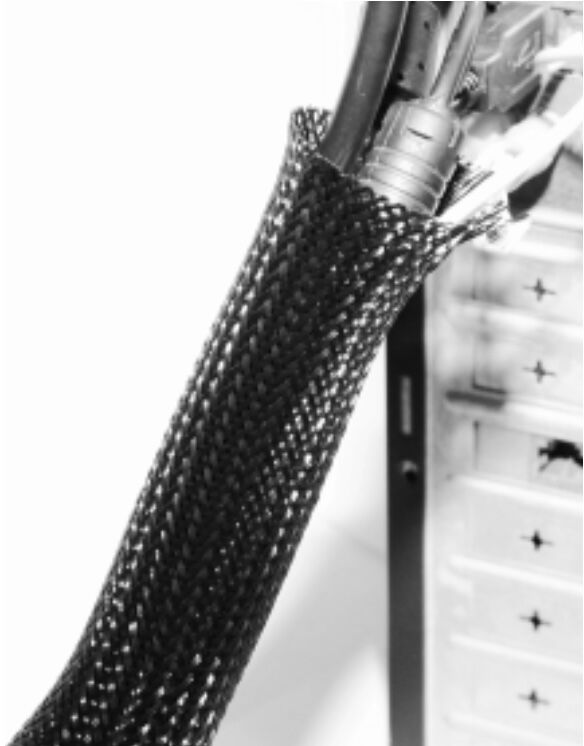

The JDD-VCW Hook and Loop Braided Wrap is an efficient and convenient solution for managing and organizing cables, ensuring a tidy and well-regulated environment. This wrap is made from high-quality polyester multifilament and features a hook and loop closure, allowing it to be easily wrapped around cables and re-opened as needed for adding or removing cables. It is ideal for use in home theater setups, computer systems, and other environments where cable management is essential.

Technical Specifications

  • Material:
    • Wrap Material: Polyester multifilament
    • Hook and Loop Material: Polyamide
  • Operating Temperature Range: -40 to +125
  • Melt Point: 240±10
  • Flammability: UL94 V2
  • Color Options: Black, White, Grey
  • Certification: RoHS, Halogen Free

Key Features

  • Easy Installation: The hook and loop closure allows for quick and secure installation around cable bundles, making it easy to manage and adjust as needed.
  • Re-Openable: The wrap can be easily opened and closed, allowing for rapid cable adjustments and additions.
  • Durable Protection: Provides strong protection against abrasion and environmental stress, ensuring the longevity of cables.
  • Flexible: The braided design offers flexibility, allowing it to conform to various cable shapes and sizes.

Interested in our products?

Leave your details, and we'll get back to you:

מתעניינים במוצר שלנו?

השאירו פרטים ונחזור אליכם:

מתעניינים במוצר שלנו?

השאירו פרטים ונחזור אליכם:

Idanim P/N

Part No.

Nominal size

Hook and loop width

Max. bundle dia.

Packing

m

I-VCW-13

VCW-013

13

10

10

25

I-VCW-19

VCW-019

19

10

15

25

I-VCW-32

VCW-032

32

20

20

25

I-VCW-51

VCW-051

51

20

30

25

I-VCW-64

VCW-064

64

20

45

25

Notes: Unit : mm

  1. Nominal size indicates the flat width; I.D. indicates round inner diameter.
  2. The part No. will be followed by BK, WH, GR, and so on to indicate the color .
  3. Special packages, sizes, and colors can be supplied upon request.
  4. All numerical data are the average value, not including customized sizes.
