RSCE

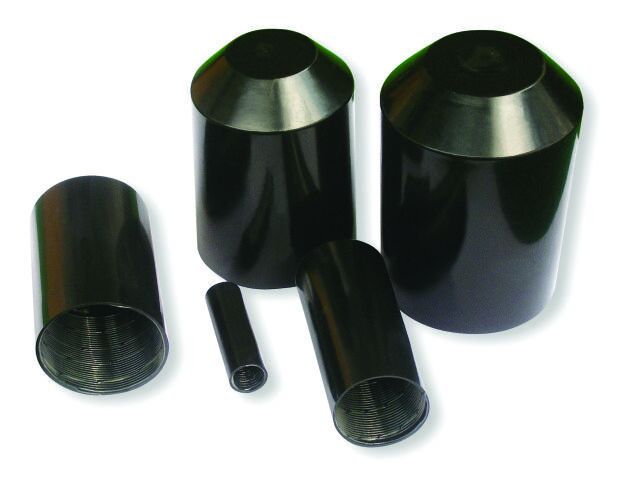

Heat-Shrinkable End-Cap

The RSCE Heat-Shrinkable End-Cap is expertly designed for secure sealing of the distal ends of electric power and telecommunication cables. It provides robust protection against moisture ingress, ensuring long-term reliability and performance of cable installations, particularly in environments that expose cables to the elements.

Technical Specifications

  • Material: Durable heat-shrinkable polymer
  • Shrink Ratio: Conforms tightly to cable ends upon application of heat
  • Tensile Strength: 12 MPa offering excellent mechanical protection
  • Elongation at Break: 300% allowing flexibility while maintaining a tight seal
  • Heat Aging: Retains mechanical properties even after extended exposure to temperatures up to 120°C
  • Volume Resistance: ≥10^9 Ω-cm ensuring superior electrical insulation
  • Dielectric Strength: ≥ 18 kV/mm protecting against electrical breakdown
  • Water Absorption: <0.5% minimizing risk of corrosion and other water-related damages
  • Installation: Easily applied using a standard heat gun which provides a secure water-resistant seal
  • Application: Suitable for both electric power and telecommunication cables, enhancing protection at exposed cable ends
RSCE

Dimension

Offered in a range of sizes to fit various cable diameters, ensuring a snug and effective seal for a wide variety of cable specifications.

Ensure the protection and reliability of your cable installations with the RSCE Heat-Shrinkable End-Cap, providing superior sealing and insulation in challenging environments.

Interested in our products?

Leave your details, and we'll get back to you:

מתעניינים במוצר שלנו?

השאירו פרטים ונחזור אליכם:

מתעניינים במוצר שלנו?

השאירו פרטים ונחזור אליכם:

Download Datasheet

Idanim P/N

Spec.

As Supplied

Inner Diameter (D)

(Min) mm

As Supplied

Wall Thickness (T)

(±20%) mm

As Supplied

Height (L)

(±5) mm

After Recovered

Inner Diameter (D)

(Max) mm

After Recovered

Wall Thickness (T)

(±10%) mm

I-RSCE-12

Φ12

12

1.0

45

5

2.5

I-RSCE-16

Φ16

16

1.0

70

8.5

2.5

I-RSCE-20

Φ20

20

1.0

70

8.5

2.5

I-RSCE-25

Φ25

25

1.0

80

11

2.5

I-RSCE-30

Φ30

30

1.3

95

16

2.8

I-RSCE-35

Φ35

35

1.0

95

18

2.6

I-RSCE-40

Φ40

40

1.1

95

18

2.6

I-RSCE-55

Φ55

55

1.0

125

26

2.7

I-RSCE-75

Φ75

75

1.3

145

31

3.2

I-RSCE-97

Φ100

97

1.3

140

40

5.2

I-RSCE-117

Φ120

117

1.3

155

57

4.0

I-RSCE-140

Φ140

140

1.3

185

63

4.0

I-RSCE-158

Φ160

158

2.1

270

95

4.0

I-RSCE-180

Φ180

180

2.1

270

95

4.0

I-RSCE-200

Φ200

200

1.5

270

95

4.0

I-RSCE-245

Φ250

245

1.5

270

95

4.0
