CYG-DS 406

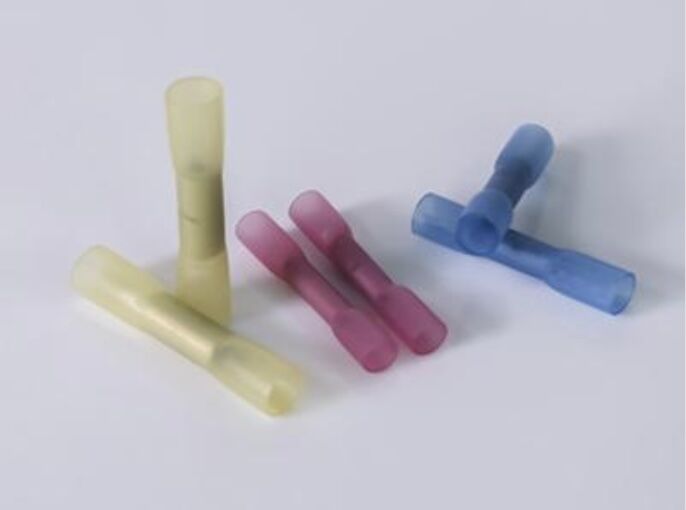

Heat Shrink Butt Connector
The CYG-DS 406 Heat Shrink Butt Connector is designed for reliable and efficient electrical connections. Constructed with an irradiated cross-linked modified polyolefin exterior and an inner layer of hot-melt adhesive, this butt connector ensures outstanding insulating, waterproof, and moisture-resistant performance. It also provides excellent protection against corrosion caused by salt spray, fluid, and moisture, making it ideal for various demanding applications.
Technical Specifications
Material:
- Exterior Layer: Irradiated cross-linked modified polyolefin
- Inner Layer: Hot-melt adhesive
- Shrink Ratio: 4:1
- Operating Temperature Range: -55℃ to +125℃
- Resistance: High resistance to cut-through and abrasion
- Waterproof and Moisture Resistant: Ensures secure, long-lasting connections
Applications
- Automotive Wiring: Protects wiring linkages and connections from environmental factors.
- Electronic Machines: Provides insulation and protection for sensitive electronic components.
- Marine Equipment: Offers corrosion resistance in marine environments, ensuring longevity.
- General Electrical Applications: Suitable for any application requiring high mechanical strength and friction resistance.
Ensure secure, waterproof, and reliable electrical connections with the CYG-DS 406 Heat Shrink Butt Connector, designed to withstand the most challenging environmental conditions.
Interested in our products?
Leave your details, and we'll get back to you:
מתעניינים במוצר שלנו?
השאירו פרטים ונחזור אליכם:
מתעניינים במוצר שלנו?
השאירו פרטים ונחזור אליכם:
Datasheet
Datasheet
| Idanim P/N | Size | Wire Range AWG | Wire Range mm² | Dimension of Copper Tube (mm) OD | Dimension of Copper Tube (mm) B | Dimension of Copper Tube (mm) L2 | Heat shrink tube(mm) OD | Heat shrink tube(mm) A | Heat shrink tube(mm) L1 | Color | Package Pcs/bag |
| I-DS-406-4.7 | Φ4.7 | 22-18 | 0.5-1.0 | 3.3 | 1.7 | 15 | 5.9 | 4.7 | 36 | Red | 500 |
| I-DS-406-5.7 | Φ5.7 | 16-14 | 1.5-2.5 | 4.0 | 2.4 | 15 | 7.1 | 5.7 | 36 | Blue | 500 |
| I-DS-406-6.7 | Φ6.7 | 12-10 | 4.0-6.0 | 5.5 | 3.5 | 15 | 8.1 | 6.7 | 42 | Yellow | 500 |
