CB-HFT (YG)

Zero Halogen Heat Shrink Tubing

The CB-HFT (YG) Zero Halogen Heat Shrink Tubing is designed for efficient and environmentally friendly insulation of electrical components and wiring. This tubing features a yellow and green striped design, widely used for ground marking and wire linkage identification, ensuring high visibility and safety in various applications. Made from irradiated cross-linked modified polyolefin, it provides excellent insulation, heat resistance, and high voltage resistance.

Technical Specifications

  • Material: Irradiated cross-linked modified polyolefin
  • Shrink Ratio: 2:1
  • Operating Temperature Range: -40℃ to +125℃
  • Shrink Temperature: >90℃
  • Color: Yellow/Green
  • Standards Compliance: RoHS, REACH, SONY, UL224 VW-1, F-mark, UL125℃ (E180908)

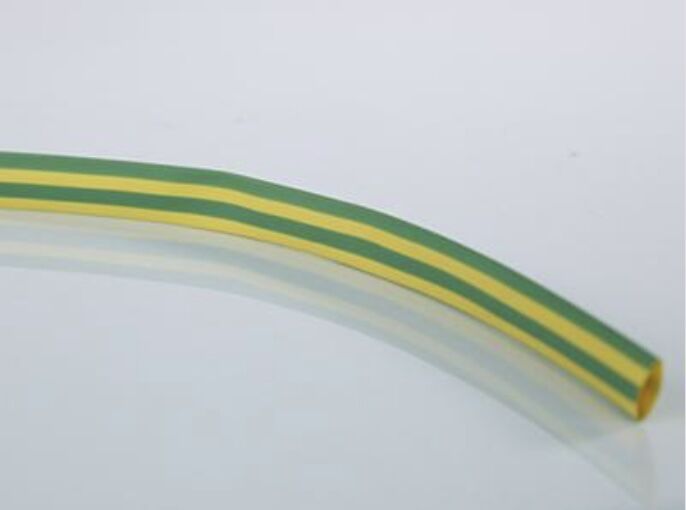

CB-HFT (YG)
CB-HFT (YG) - Image 2

Key Features

  • Zero Halogen: Low smoke and toxicity, ensuring safety and environmental compliance.
  • Flame Resistant: Complies with UL224 VW-1 standards for flame retardancy.
  • High Insulation Performance: Excellent dielectric strength and electrical insulation properties.
  • Flexible and Durable: Maintains flexibility and durability across a wide temperature range.
  • Easy Installation: Simplified application process using standard heat tools.

Interested in our products?

Leave your details, and we'll get back to you:

מתעניינים במוצר שלנו?

השאירו פרטים ונחזור אליכם:

מתעניינים במוצר שלנו?

השאירו פרטים ונחזור אליכם:

Download Datasheet

Idanim P/N

Size (mm)

As supplied (mm)

Inside diameter (D)

As supplied (mm)

Wall thickness (T)

After recovery (mm)

Inside diameter (d)

After recovery (mm)

Wall thickness (t)

COLOR

I-CB-HFT-2-BLK

Ф2.0

2.5+0.2/-0.1

0.20±0.05

≤1.00

0.42±0.08

BLACK

I-CB-HFT-2.5-BLK

Ф2.5

3.0+0.2/-0.1

0.22±0.05

≤1.25

0.46±0.08

BLACK

I-CB-HFT-3-BLK

Ф3.0

3.5+0.2/-0.1

0.22±0.05

≤1.50

0.46±0.08

BLACK

I-CB-HFT-3.5-BLK

Ф3.5

4.0+0.2/-0.1

0.22±0.05

≤1.75

0.46±0.08

BLACK

I-CB-HFT-4-BLK

Ф4.0

4.6+0.2/-0.1

0.22±0.05

≤2.00

0.46±0.08

BLACK

I-CB-HFT-4.5-BLK

Ф4.5

5.0+0.2/-0.1

0.23±0.05

≤2.25

0.46±0.08

BLACK

I-CB-HFT-5-BLK

Ф5.0

5.5+0.2/-0.1

0.25±0.05

≤2.50

0.50±0.08

BLACK

I-CB-HFT-6-BLK

Ф6.0

6.5+0.2/-0.1

0.25±0.05

≤3.00

0.55±0.10

BLACK

I-CB-HFT-7-BLK

Ф7.0

7.5+0.2/-0.1

0.25±0.05

≤3.50

0.55±0.10

BLACK

I-CB-HFT-8-BLK

Ф8.0

8.5+0.3/-0.1

0.28±0.06

≤4.00

0.58±0.10

BLACK

I-CB-HFT-9-BLK

Ф9.0

9.5+0.2/-0.1

0.28±0.06

≤4.50

0.58±0.10

BLACK

I-CB-HFT-10-BLK

Ф10

10.5+0.3/-0.1

0.28±0.06

≤5.00

0.58±0.10

BLACK

I-CB-HFT-12-BLK

Ф12

12.5+0.3/-0.1

0.28±0.06

≤6.00

0.58±0.10

BLACK

I-CB-HFT-13-BLK

Ф13

13.5+0.3/-0.1

0.28±0.06

≤6.50

0.58±0.10

BLACK

I-CB-HFT-14-BLK

Ф14

14.5+0.3/-0.1

0.28±0.06

≤7.00

0.58±0.10

BLACK

I-CB-HFT-15-BLK

Ф15

15.5+0.3/-0.1

0.28±0.06

≤7.50

0.58±0.10

BLACK

I-CB-HFT-16-BLK

Ф16

16.5+0.3/-0.1

0.28±0.06

≤8.00

0.58±0.10

BLACK

I-CB-HFT-18-BLK

Ф18

18.5+0.3/-0.1

0.32±0.08

≤9.00

0.68±0.10

BLACK

I-CB-HFT-20-BLK

Ф20

20.6+0.5/-0.2

0.32±0.08

≤10.0

0.68±0.10

BLACK

I-CB-HFT-22-BLK

Ф22

22.6+0.7/-0.2

0.35±0.08

≤11.0

0.72±0.12

BLACK

I-CB-HFT-25-BLK

Ф25

25.6+0.7/-0.2

0.40±0.10

≤12.5

0.78±0.12

BLACK

I-CB-HFT-28-BLK

Ф28

28.6+0.7/-0.2

0.40±0.10

≤14.0

0.78±0.12

BLACK

I-CB-HFT-30-BLK

Ф30

30.6+0.7/-0.2

0.40±0.10

≤15.0

0.82±0.12

BLACK

I-CB-HFT-35-BLK

Ф35

35.6+0.7/-0.2

0.45±0.10

≤17.5

0.92±0.12

BLACK
