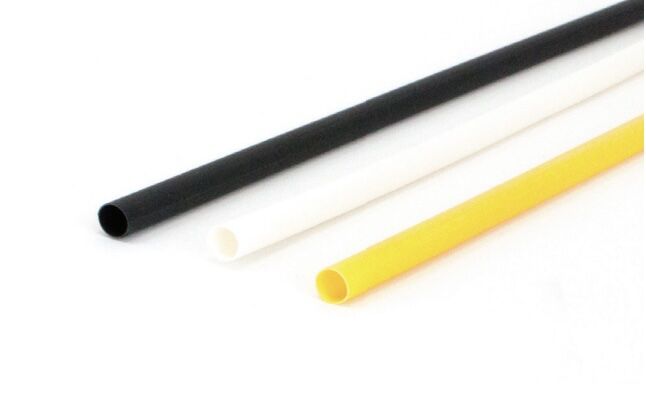

DERAY®-ZoH125
Halogen-Free, Flame Retardant Heat Shrink Tubing
The DERAY®-ZoH125 Halogen-Free, Flame Retardant Heat Shrink Tubing offers exceptional fire safety with low smoke generation and minimal toxic fume emissions. Featuring a 2:1 shrink ratio and an operating temperature range from -40°C to 125°C, this tubing is ideal for applications in mass transit, subways, defense, offshore, marine, and industrial markets. It meets several stringent industry standards, including EN45545-2 HL3 R22/R23, LUL E 1042 A6, BS 6853 vehicle category 1a, and DIN 5510.
Constructed from a modified polyolefin that is free of lead, cadmium, and halogen, the DERAY®-ZoH125 tubing offers good fluid resistance and a flexible, flame-retardant design. The soft surface finish supports good printability, making it suitable for cable identification applications in environments where fire safety and low smoke emissions are crucial.
Key Features
– Low Smoke Generation: Ensures excellent fire safety characteristics.
– Flexible and Flame Retardant: Enhances safety in critical applications.
– Good Fluid Resistance: Suitable for harsh environments.
– Versatile Applications: Ideal for insulation of electrical components in mass transit, marine, military, aerospace, and heavy industry.
– Certified: Meets stringent safety standards, ensuring compliance with EN45545-2 HL3 R22/R23, LUL E 1042 A6, BS 6853, and DIN 5510.
Technical Specifications
– Material: Modified polyolefin, free of lead, cadmium, and halogen
– Operating Temperature Range: -40°C to 125°C
– Shrink Temperature: 120°C min
– Shrink Ratio: 2:1
– Color Options: Black (BK), yellow (YL), white (WT)
Interested in our products?
Leave your details, and we'll get back to you:
מתעניינים במוצר שלנו?
השאירו פרטים ונחזור אליכם:
מתעניינים במוצר שלנו?
השאירו פרטים ונחזור אליכם:
Datasheet
DERAY®-ZoH125 - Halogen Free Flame Retardant (-40°C to 125°C, 2:1 Shrink)
| Idanim P/N | ORDER NUMBER | EXPANDED Internal Diameter (min) D mm (in) | RECOVERED Internal Diameter (max) d mm (in) | RECOVERED Total Wall Thickness (nom) W mm (in) | DELIVERY UNITS SPOOL m (ft) |
| I-DERAY-ZO125-3/32 | 0094 | 2.4 (3/32) | 1.2 (3/64) | 0.51 (0.020) | 100 (328) |
| I-DERAY-ZO125-1/8 | 0125 | 3.2 (1/8) | 1.6 (1/16) | 0.51 (0.020) | 100 (328) |
| I-DERAY-ZO125-1/9 | 0187 | 4.8 (3/16) | 2.4 (3/32) | 0.51 (0.020) | 75 (246) |
| I-DERAY-ZO125-1/4 | 0250 | 6.4 (1/4) | 3.2 (1/8) | 0.64 (0.025) | 75 (246) |
| I-DERAY-ZO125-3/8 | 0375 | 9.5 (3/8) | 4.8 (3/16) | 0.64 (0.025) | 75 (246) |
| I-DERAY-ZO125-1/2 | 0500 | 12.7 (1/2) | 6.4 (1/4) | 0.64 (0.025) | 50 (164) |
| I-DERAY-ZO125-3/4 | 0750 | 19.0 (3/4) | 9.5 (3/8) | 0.76 (0.030) | 30 (98) |
| I-DERAY-ZO125-1 | 1000 | 25.4 (1) | 12.7 (1/2) | 0.89 (0.035) | 30 (98) |
| I-DERAY-ZO125-1-1/2 | 1500 | 38.1 (1 1/2) | 19.0 (3/4) | 1.02 (0.040) | 30 (98) |
