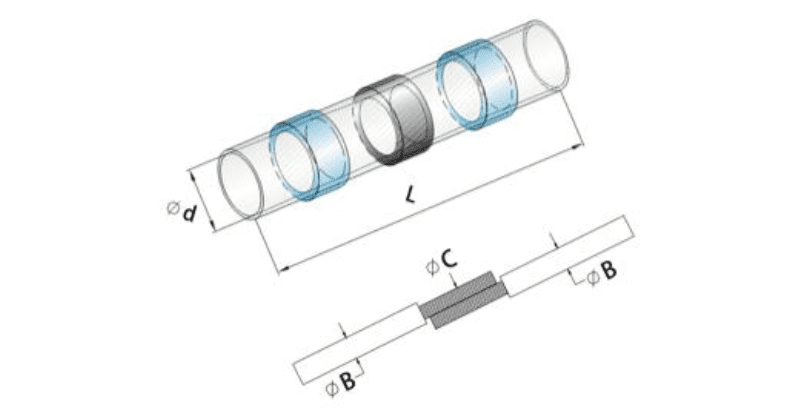

CYG-HSSS Heat-Shrinkable Solder Sleeving
Seamless Electrical Connection with Built-In Solder & Adhesive
The CYG-HSSS heat-shrinkable solder sleeve is designed to simplify wire and cable termination, combining soldering, sealing, and insulation into a single, efficient step. With a built-in solder ring and inner adhesive, it ensures fast, reliable, and waterproof connections that meet high-performance standards.
Perfect for aerospace, automotive, telecommunications, and industrial wiring applications where environmental sealing and electrical integrity are critical.
Key Features
- All-in-One Design: Solders, insulates, and seals in a single step
- Integrated Hot-Melt Adhesive: Provides strong waterproof sealing

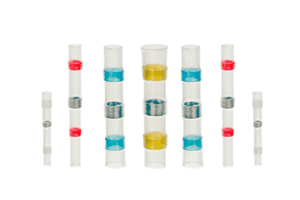

- Color-Coded by Size: Quick identification for various wire gauges
- Quick Assembly: Meltable solder ring enables efficient installation
- Wide Temperature Range: Operating from -55℃ to +125℃
- Shrink Temperature: Full recovery at ≥150℃
- 2:1 Shrink Ratio
Electrical & Mechanical Performance
- Tensile Strength (Unaged): ≥14 MPa
- Elongation at Break (Unaged): ≥400%
- Tensile Strength (Aged 150°C/7 days): ≥10 MPa
- Elongation at Break (Aged): ≥200%
- Dielectric Strength: AC 2500V / 60s, no breakdown
- Volume Resistance: ≥1.0×10¹⁴ Ω·cm
- Heat Shock (200°C / 4h): No cracking
- Cold Bend (-40°C / 4h): No cracking or breaking
